#8 Winch


#8 Winch

350.00

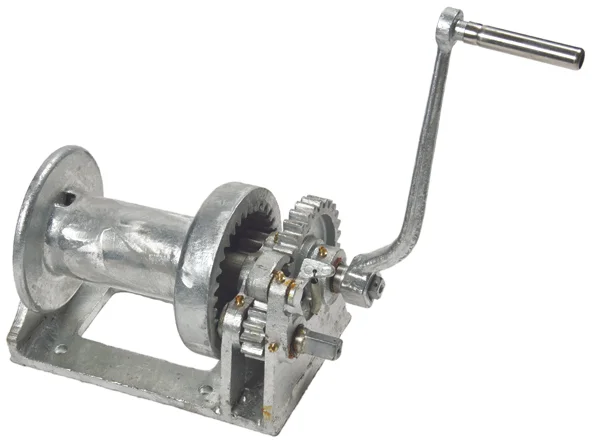

#8 Galvanized Marine Hand Winch



Quantity:
Add To Cart

Dimensions

  • Inside drum width:  6''
  • Mounting holes: 5 3/4'' x 4 1/2'' to center of holes
  • Bolt Diameter: 7/16''

Cable Capacity

  • 1/4''                    150 feet
  • 5/16''                 105 feet
  • 3/8'' (max size)  65 feet

Weight:   35 lbs.

Holding capacity: 3,000 lbs

Lifting capacity: 1,500 lbs

Gear ratio

  • Large gear- 3 to 1
  • Small gear- 8 to 1

Hand brake: No

  • Hot-dipped and galvanized for superior corrosion protection
  • Extra heavy-duty construction in winch frame and spool brackets
  • Grease fittings at all wear and stress points to insure smooth operation
  • Spring loaded holding dog for a secure lock
  • Adjustable handle for easy operation
  • Positive retention cable holding mechanism
  • Two speed operation
  • To be used as anchoring devices—not designed for live loads
