#10 Winch


#10 Winch

657.00

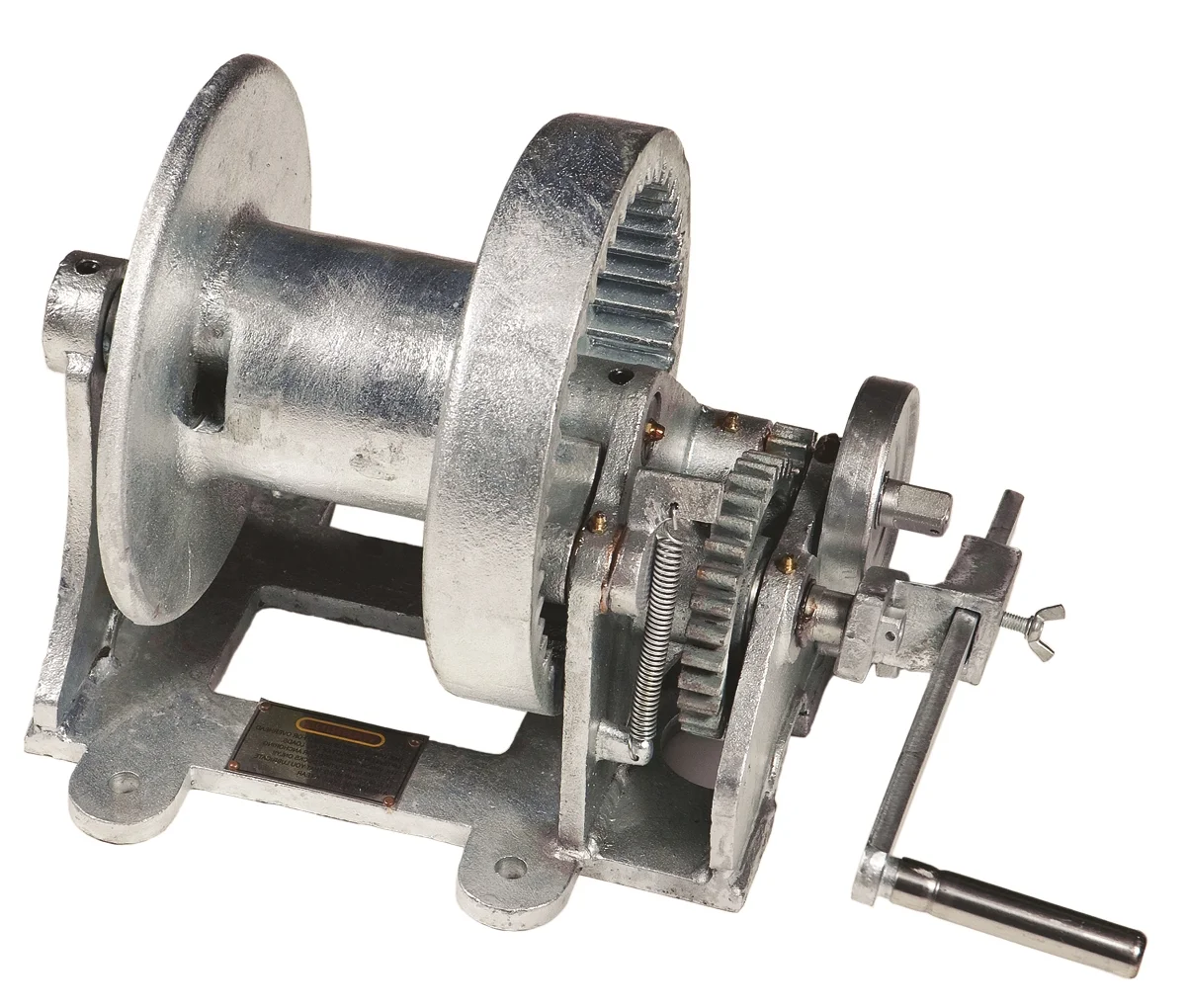

#10 Galvanized Marine Hand Winch



Quantity:
Add To Cart

Dimensions

  • Inside drum width:  5''
  • Mounting holes: 7'' x 8 1/2'' to center of holes
  • Bolt Diameter: 1/2''

Cable Capacity

  • 3/8''                    130 feet
  • 1/2''                      92 feet
  • 5/8''                     60 feet

  • 3/4''                      37 feet

Weight:   85 lbs.

Holding capacity: 10,000 lbs

Lifting capacity: 3,000 lbs

Gear ratio

  • Large gear- 4 to 1
  • Small gear- 11 to 1

Hand brake available: Yes

  • Hot-dipped and galvanized for superior corrosion protection
  • Extra heavy-duty construction in winch frame and spool brackets
  • Grease fittings at all wear and stress points to insure smooth operation
  • Spring loaded holding dog for a secure lock
  • Adjustable handle for easy operation
  • Positive retention cable holding mechanism
  • Two speed operation
  • To be used as anchoring devices—not designed for live loads
